Easy reading minimum 0.8mm * 0.8mm DM
Compatible with various DPM coding processes, one machine can handle DPM codes
Multi light source code scanning technology, three light sources and three angles
Automatic mode & special mode can be switched arbitrarily
Green dot area positioning design, the gun does not lose the "target"
P65 industrial quality, 1.8m drop protection
High capacity battery with ultra-low power consumption optimization

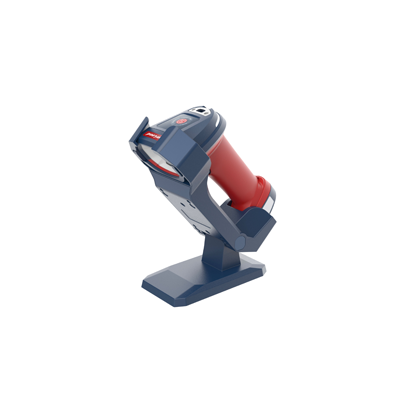

Equipped with intelligent base, one machine is dual-purpose
outdoor operation, warehousing and logistics, assembly line, complete automobile and parts, 3C electronic manufacturing, battery manufacturing, PCBA manufacturing, etc
| Suzhou SuperMax Smart System Co., Ltd. | X82 Technical Specification | |
| Physical Characteristics | ||
| Dimensions | 92mm x 75mm x 199.5mm | |
| Weight | 309.2g | |
| Shell Material | PC, TPU | |
| Power Supply | 3.7V, 2600mAH Li-ion Battery | |
| Performance Characteristics | ||
| Sensor Pixels | Global shutter, 1280 x 1080, 60FPS | |
| Light Source Illumination | White point light source, red low angle ring light, red/blue dome light | |
| Field of View Angle | SR/HD: horizontal 40 degrees, ER/XD: horizontal 35 degrees | |
| Roll / Pitch / Yaw | 360°, ±65°, ±60° | |
| Operating Distance | 100 meters (open space) | |
| Endurance | Can work continuously for 8 hours (new battery, full charge) | |
| Wireless Technology | Bluetooth v5.0 | |
| Print Contrast | ≥15% | |
| Communication Interface | QR, DataMatrix, PDF417, Aztec | |
| Symbology Decode Capability | 2-D | PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin,etc. |
| 1-D | Code128, Code93, Code39, Interleaved 2 of 5, Industrial 2 of 5, IAN/EAN/UPC | |
| User Environment | ||
| Working Temperature | 0℃~50℃ | |
| Storage Temperature | -20℃~70℃ | |
| Esd Protection | Contact discharge: ± 8KV, air discharge: ± 15KV, coupling discharge: ± 8KV | |
| Enclosure Protection | IP65 | |
| Drop | 1.8m cement floor, free fall, 6 surfaces x 5 times/surface=30 times | |
| Environmental Photoimmunity | 100.000Lux | |
