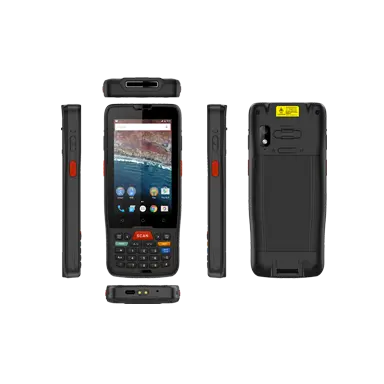

Superlead S71 Digital Keyboard PDA
Superlead S71 Digital Keyboard PDA

Superlead S71 Digital Keyboard PDA

Details of Superlead S71 Digital Keyboard PDA


  • Durable

  • Ultra thin shape, good grip


Specification of Superlead S71 Digital Keyboard PDA


基本配置Platform and OS Features
操作系统Operating SystemAndroid 10
CPU Model八核Octa cores,up to 2.0GHz,12nm
屏幕LCD5",TFT IPS,720*1280 HD
触摸屏Touch PanelGFF Full lamination,5 points
内存Memory Type3GB RAM + 32GB ROM
可拓展存储Extended Storage TypeTF CARD,up to 128GB
主摄Primary Camera13MP,PDAF, Flash light
电池/充电器Battery/ChargerLi-polymer,4020mAh, Detachable;5V/2A USB Charging
接口System I/O connectorUSB 2.0 OTG Type-C, with Type-C headphone support
SIM Card双卡双待Nano+Nano/TF
传感器SensorsG-sensor, Proximity Sensor, Light Sensor, Hall Sensor
扫码引擎Scan   Engine Specification
型号ModelSE613
像素Image(Pixels)1280 pixels(H) x 1080 pixels(V)
视场角Field of View40°(H) x 34°(V)
光源Light SourceAiming: Red Dot LED; Illumination:White LED
支持条码Decode Capability1D barcode:
UPC, EAN, Code128, Code 39, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5,Codabar, MSI
Plessey, GS1 DataBar, China Postal, Korean Postal, etc.
2D barcode:
PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin, etc.
解码距离Decode Ranges5mil:14cm-19cm 22mil:Up to 80cm
NFC Specification
频率Frequency13.56MHz
读取距离NFC Reading DistanceNFC TYPE1≥40mm/TYPE2≥40mm/TYPE3≥30mm/TYPE4≥20mm
可支持通讯协议NFC Smart TagISO 14443 Type A and B/FeliCa/MIFARE/ISO 15693 cards
通讯 RF Specification
无线WLANIEEE 802.11a/b/g/n/ac 2.4G/5G
网络制式WWANLTE FDD/LTE TDD/WCDMA/GSM/GPRS/EDGE
4G:LTE   Band:FDD:B1/B3/B5;TDD:B38/B39/B40/B41
3G:UMTS Band:WCDMA   B1/B2/B4/B5/B8;HSPA+/REL8
2G:GSM Band:GSM:   850/900/1800/1900Mhz;GSM/GPRS class12
EDGE Type:UL/DL;EDGE class12
CA:   CA_1,CA_3,CA_5,CA_38,CA_39,CA_40,CA_41;CA_1-1,CA_3-3,CA_5-5,CA_40-40,CA_41-41,CA_1-3
蓝牙WPANBT 5.0/BLE
定位Location & NavigationGPS/A-GPS,Beidou,GLONASS
基本参数Dimension and Misc
尺寸Dimension154mm×71.4mm×15.5mm
重量Weight228g(include battery)
按键KeypadPower, Volume Up/Down, Left/Right Scan; Touch Panel key: Back, HOME
音频AudioMicrophone, Speaker, Receiver
环境规格User Environment
工作温度Operating Temperature-26°C ~ +55°C
存储温度Storage Temperature-30°C ~ +70°C
湿度Humidity10% ~ 90%
抗震性Shock SpecificationsDesigned to withstand 1.5m drops
IP防护等级IP LevelIP65
防静电等级ESD±8kV Touch, ±15kV Air
证书Certification Available
CTA , SRRC,   ROHS, CCC, UN38.3/MSDS
包材附件Packaging   & Accessories
P3, Battery,   Charger, USB Type-C Cable, Warranty Card, User Manual
