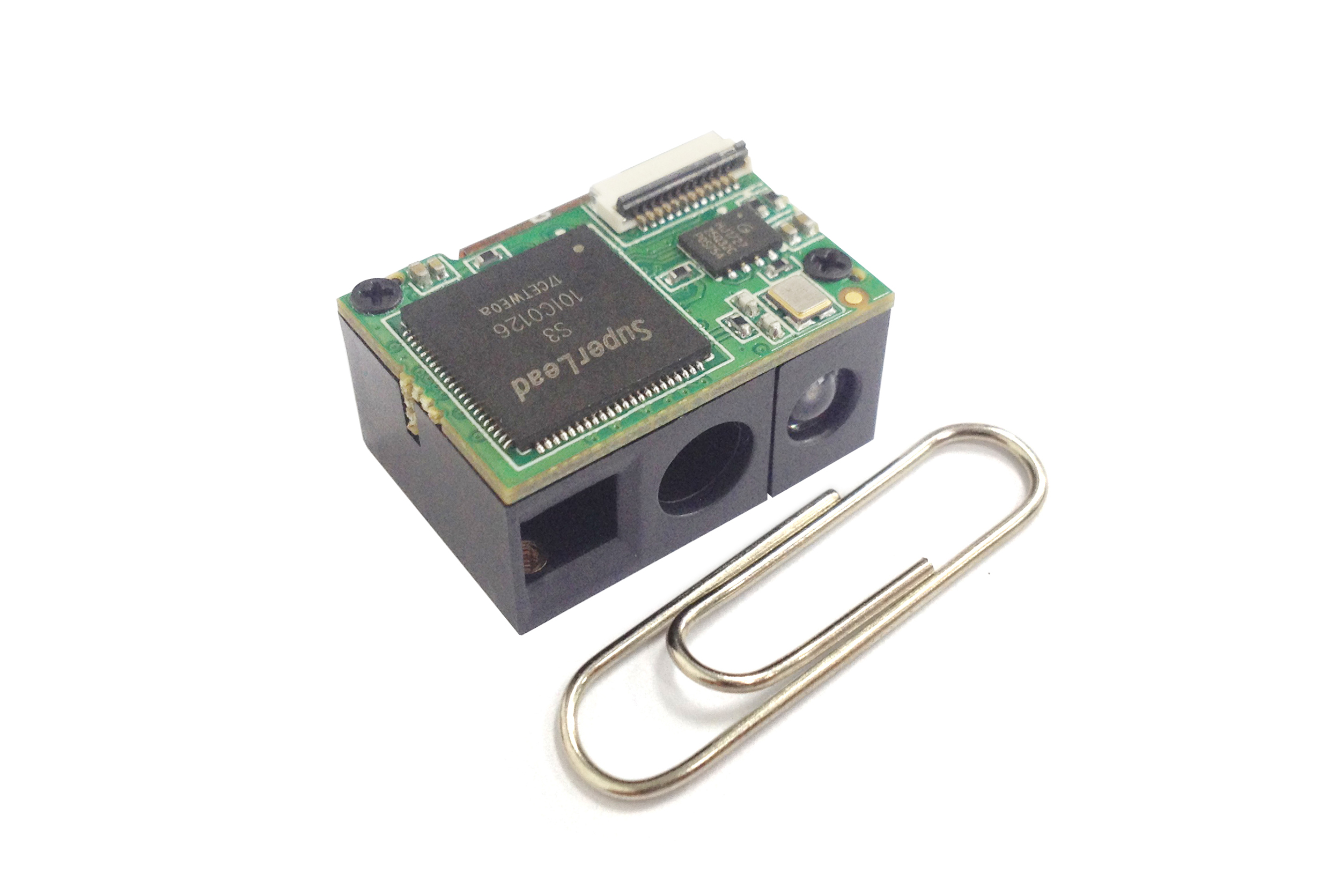

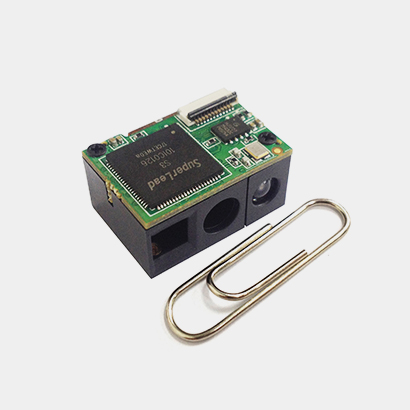

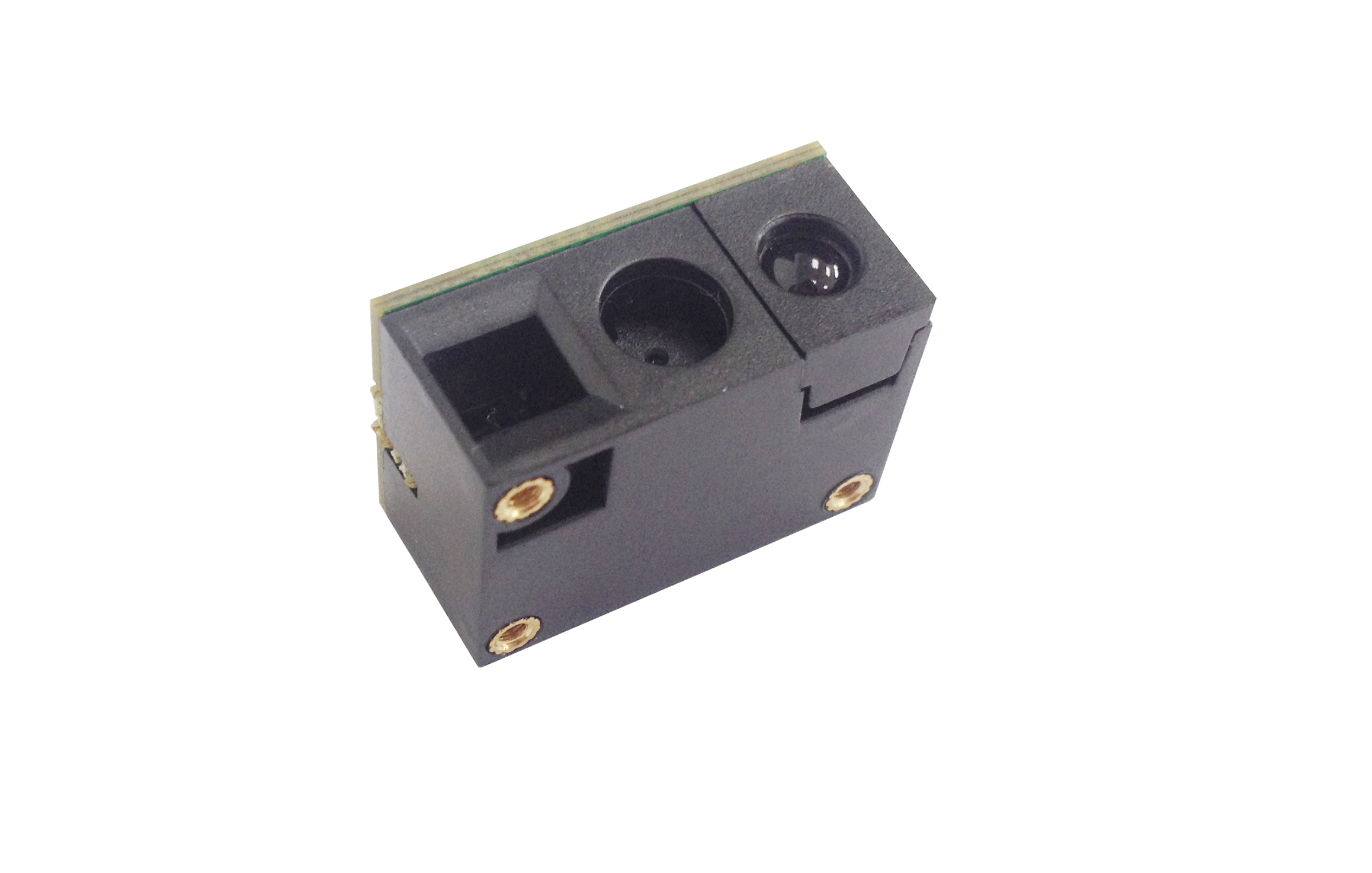

SuperLead SE6102N Mini Imager Scan Engine (module)

SuperLead SE6102N Mini Imager Scan Engine (module)

  • Self-induction image reading

  • Small size, easy to integrate

  • Low power consumption and powerful performance

  • Omni-directional Read main 1D,2D barcode

  • Fast read barcode from cellphone

Application scenario

 it is easy to integrate into various POS machines, PDAs, code scanners, self-service terminals, medical equipment, mechanical equipment, etc

Specification of SuperLead SE6102N Mini Imager Scan Engine (module)

Suzhou SuperMax Smart System Co., Ltd.5203
Technical Specification
Physical Characteristics
Dimensions:21mm x 15mm x 12mm
Current:280mA (Operating)
Performance Characteristics
Image(Pixels):640 pixels (H)x 480 pixels (V)
Light Source:Aiming: 650 nm LED; illumination: 625nm LED
Field of View:40° (H) x 35° (V)
Roll / Pitch / Yaw:360°, ±65°, ±60°
Motion Tolerances:Up to 2 m/sec
Print Contrast:25% minimum reflective difference
Interfaces Supported:USB, TTL-232
Symbology Decode Capability2-DPDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin, etc.
1-DUPC, EAN, Code128, Code 39, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5,Codabar, MSI Plessey, GS1 DataBar, China Postal, Korean Postal, etc.
Decode Ranges
20MIL (QR)30mm-290mm
10MIL (PDF 417)20mm-225mm
5MIL (Code 39)30mm-130mm
13MIL (UPC-A)40mm-300mm
User Environment
Operating Temperature:-30℃~60℃
Storage Temperature:-40℃~70℃
Humidity:0% to 95% relative humidity, non-condensing
Shock Specifications:Withstands 10Gs 0.06" double amp
Ambient Light Immunity:100.000 Lux
