SuperLead PDA-S8080
s8080 pda

SuperLead PDA-S8080

  • 4G LTE, Global band

  • Bluetooth 5.0, low power, long distance perfect matching wireless printer

  • New generation slim 2D imager scan engine

  • Support megapixel versions

  • Licensed Datalogic decoding technology

  • IP65 industrial protection

  • Large battery capacity but refined power consumption, 3 hours charging time but 15 hours working duration, 32days standby duration

  • Free to install APPLOCK, Easy Deploy and other system management software for efficient management and deployment

  • Accurate Reading Ability, only decode barcode label that's close to the center of the aiming pattern, even when many labels are crowded

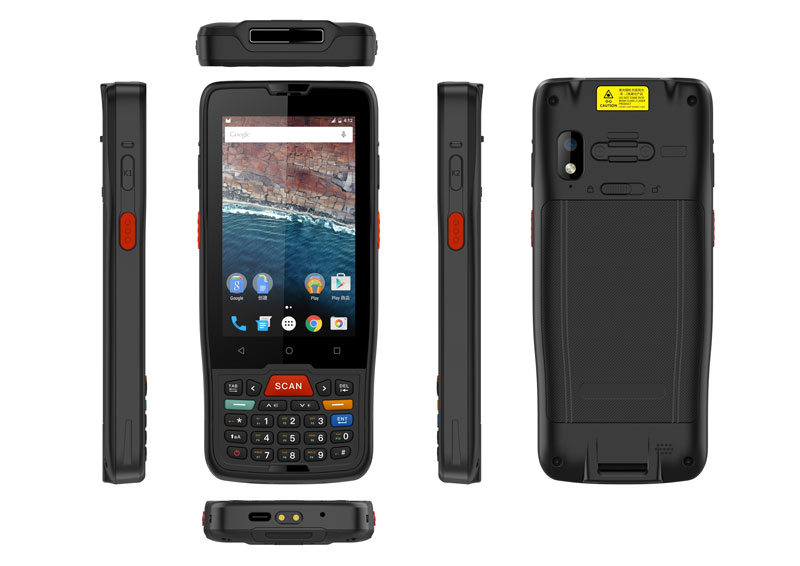

S8080 Data acquisition terminal (PDA)


Application scenarios: manufacturing, warehousing and logistics, public utilities, retail, medical equipment integration, mobile payment, etc




Specificaiton of S8080 Data acquisition terminal

Platform and OS Features
OSAndroid 9
CPUQuad /Octa Core, 2GHz, 12nm
MEMORY2+16
Extend SlotMicroSD, support SDHC up to 64GB
One micro SIM connector
PC CommunicationUSB 2.0 OTG; Type-C; Support Type-C Headset
SensorsLight, Proximity, 3D G sensor, Hall, E-compass
LEDCharging, Scan and System status
Charging Time3 hours
Operation Duration15 hours
Data Collection
Scan EngineMobydata E3200/E3250
PostAustralian Post; British Post; China Post; 1MB; Japanese Post
KIX Post; Korea Post; Planet Code; Postnet; Royal
Mail Code (RM4SCC)
NFC(2.0 version)13.56MHz NFC
WPANBT 5.0/BLE
Environmental Specifications
Operation Temperature-25℃ ~ +55℃
Storage Temperature-30℃ ~+ 70℃
Humidity5%-95%
Drop1.5m, concrete
Tumble600hits, 0.5m, Steel
IPIP65
ESD±8kV Contact, ±15kV Air
Keypad lifecycle300K
Physical Specifications
LCD4.0 inch, 800*480. visible under sunshine
TouchGFF Capacitive Touch
CameraAuto focus 8Mega, with fash LED
Keypad24 Numeric Keypad
Left/Right Scan Key, Left/Right K1, K2 user-defined Key
Back, Home, Switch
ReceiverSupport
SpeakerMin 90db at 10cm-1KHz Voice
MicNoise Reduction Mic
Charging 10USB Type-C
Charging Pad
BatteryRemovable 4000mAh
Dimension160mmx71mmxl 7 mm
Weight269g
