Flexible embedded design, easy for integration.
Super large scanning window，big vision sensor
self-induction image reading
Support motion reading, up to 6M / S
Multiple language barcode information direct transmission
"Super scan" reading, sensitive scanning
Object self induction
Built in RS232 and USB interface

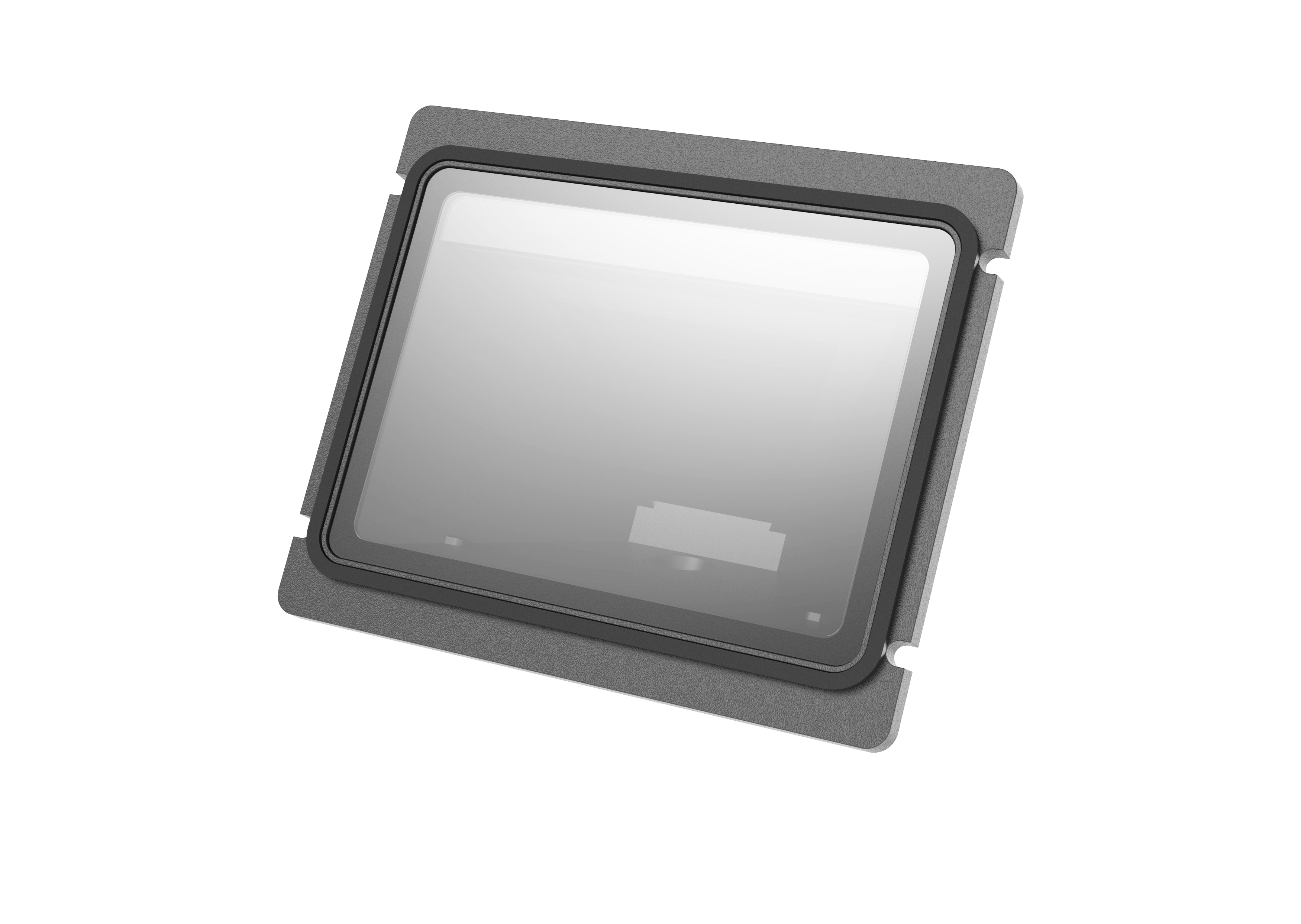

Large scan window
| Suzhou SuperMax Smart System Co., Ltd. | 72CJ-HPS Technical Specification |
Physical Characteristics | |
| Dimensions: | 143mm x 119mm x 67mm |
| Weight: | 209g |
| Voltage: | 5 VDC |
| Current: | 500mA (Operating) |
| Performance Characteristics | |
| Light Source: | Illumination: 617nm RED LED |
| Field of View: | 50° (H) x 35° (V) |
| Roll / Pitch / Yaw: | 360°, ±65°, ±60° |
| Print Contrast: | 25% minimum reflective difference |
| Motion Tolerances | up to 600 cm per second |
| Interfaces Supported: | USB, RS232 |
| Symbology Decode Capability | |
| 1-D: | UPC, EAN, Code128, Code 39, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI Plessey, GS1 DataBar, China Postal, Korean Postal, etc. |
| 2-D: | PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin, etc. |
| Minimum Resolution | 4 mil Code39 |
| User Environment | |
| Operating Temperature: | 0°C to 50°C |
| Storage Temperature: | -40°C to 70°C |
| Humidity: | 0% to 95% relative humidity, non-condensing |
| Shock Specifications: | Designed to withstand 1.5m(5') drops |
| Ambient Light Immunity: | 100.000 Lux. |
| Decode Ranges | |
| 5 mil (Code 39) | 0mm-60mm |
| 13 mil (100%Upca) | 0mm-150mm |
| Performance may be impacted by bar code quality and environmental conditions | |
