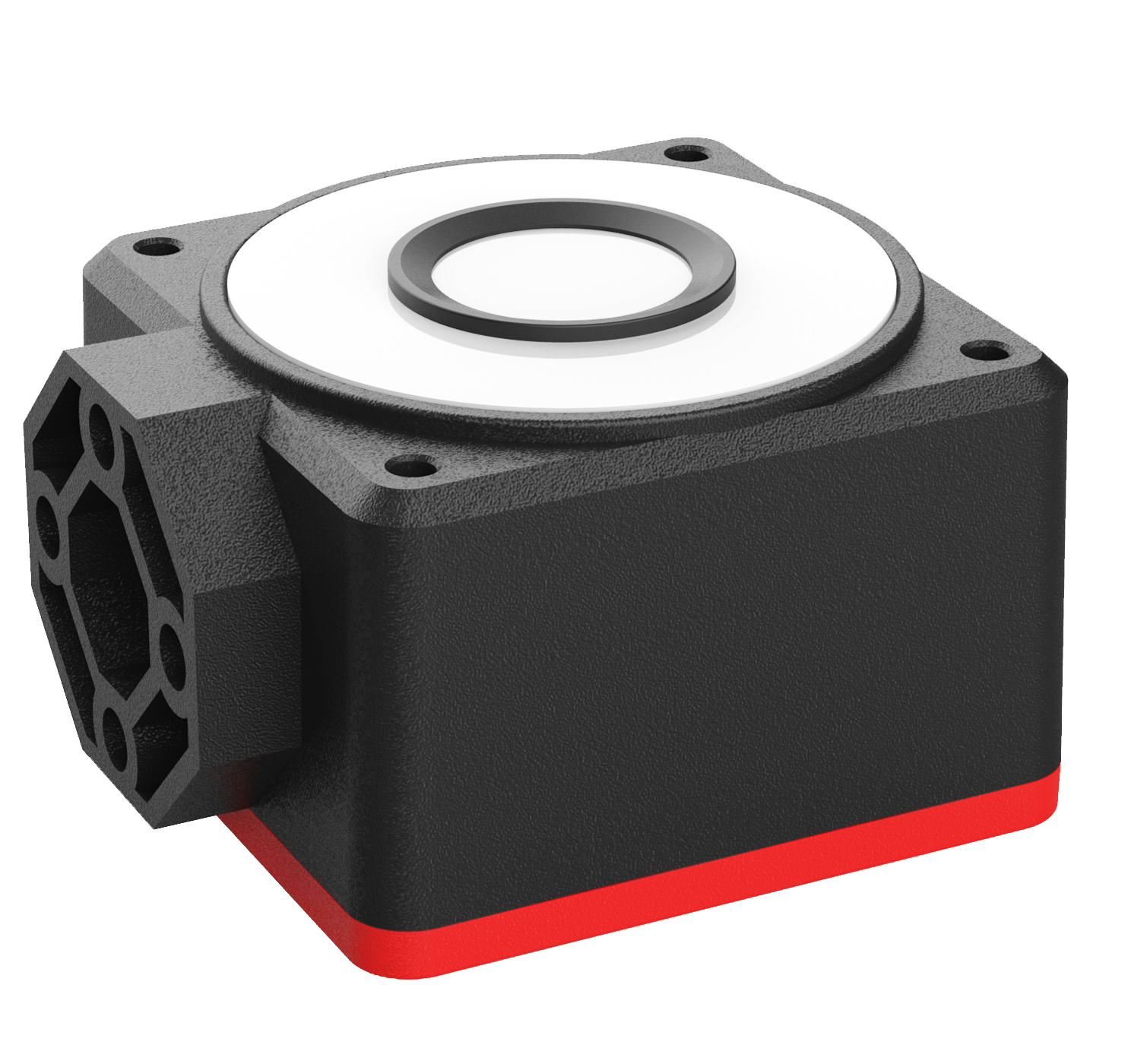

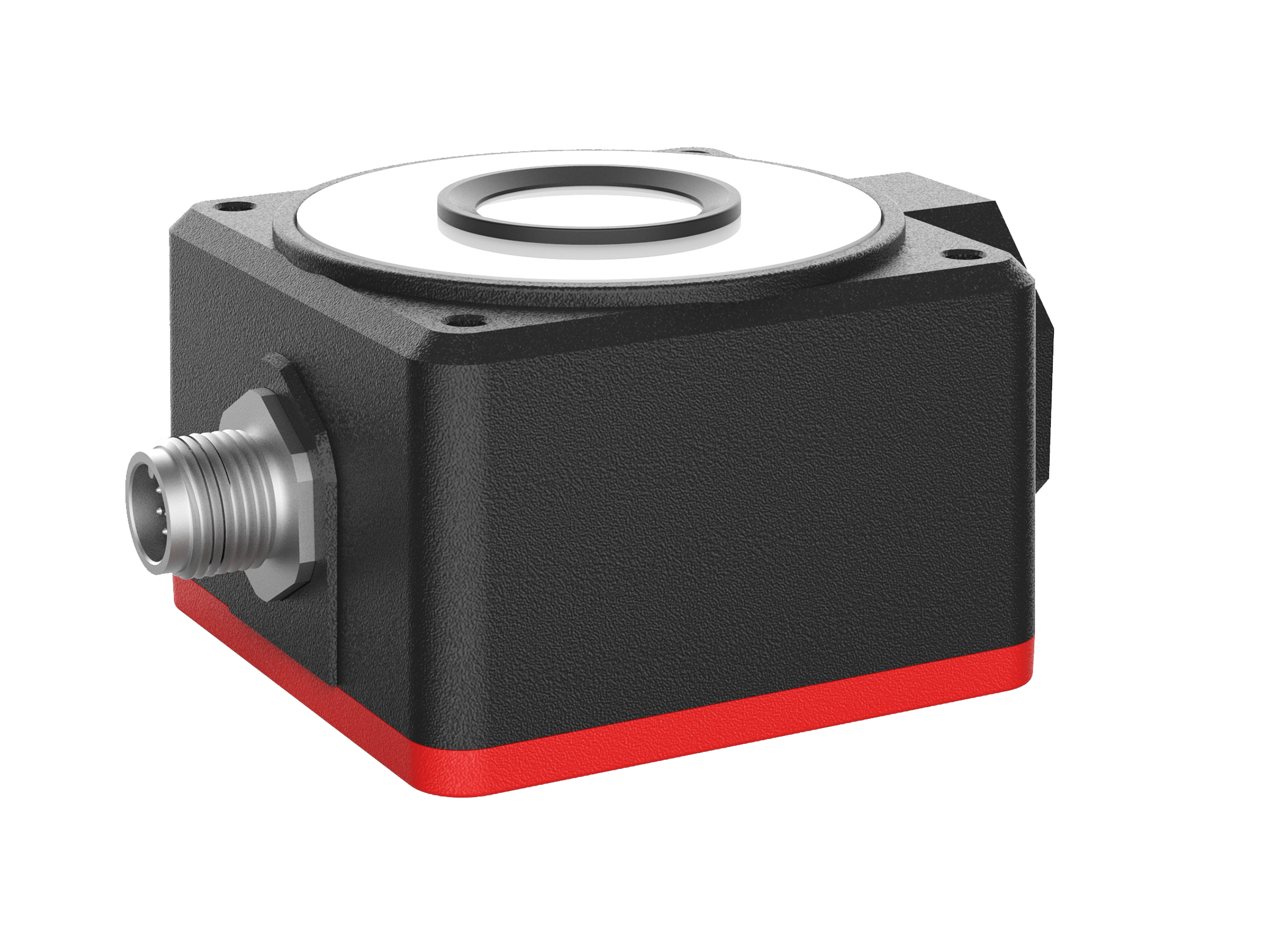

SuperLead V30 AGV Navigation Code Reader
v30 1

SuperLead V30 AGV Navigation Code Reader

  • The decoding frequency is 120 frames / s, and the movement tolerance is 2.5m/s or above

  • Polarization filter, multi angle, excellent imaging quality

  • Comprehensive ESD protection, IP64 protection

  • Low temperature resistance, can be used in harsh environment

  • Support 365x24h operation in vehicle vibration environment

  • Long term stable processing of various high-speed code reading applications

Application Scenarios Of Superlead V30 AGV Navigation Code Reader

warehouse logistics tracking and navigation, assembly line, complete automobile and parts, 3C electronic manufacturing, battery manufacturing, PCBA manufacturing, etc.



Specification of SuperLead V30 AGV Navigation Code Reader

Suzhou SuperMax Smart System Co., Ltd.V30
Technical Specification
Physical Characteristics
Dimensions68.3mm x 60mm x 40.8mm
Shell MaterialAluminium Alloy
Power Waste5W max
Power Supply5-30VDC
Performance Characteristics
Sensor PixelsGlobal shutter, 640 x 544, 120FPS
Light Source IlluminationWhite surface light source
Field of View AngleHorizontal field angle 78 °, vertical field angle 69 °
Motion ToleranceContinuous scanning mode 2.5M/S
External Input1 circuit photoelectric isolation input, which can be connected to NPN/PNP/relay
External Output1 circuit photoelectric isolation output
Symbology Decode Capability2DQR, DataMatrix, PDF417, Aztec
1DCode128, Code93, Code39, Interleaved 2 of 5, Industrial 2 of 5, JAN/EAN/UPC
User Environment
Working Temperature0℃~50℃
Storage Temperature-20℃~70℃
Enclosure ProtectionIP64
ESD ProtectionContact discharge: ± 8KV, air discharge: ± 15KV, coupling discharge: ± 8KV
