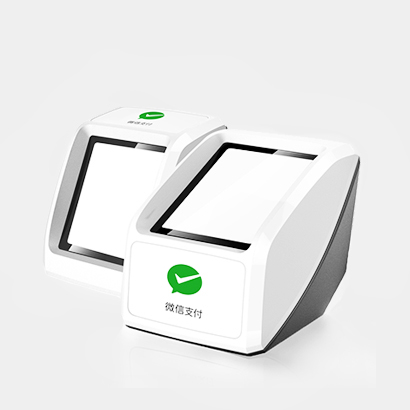

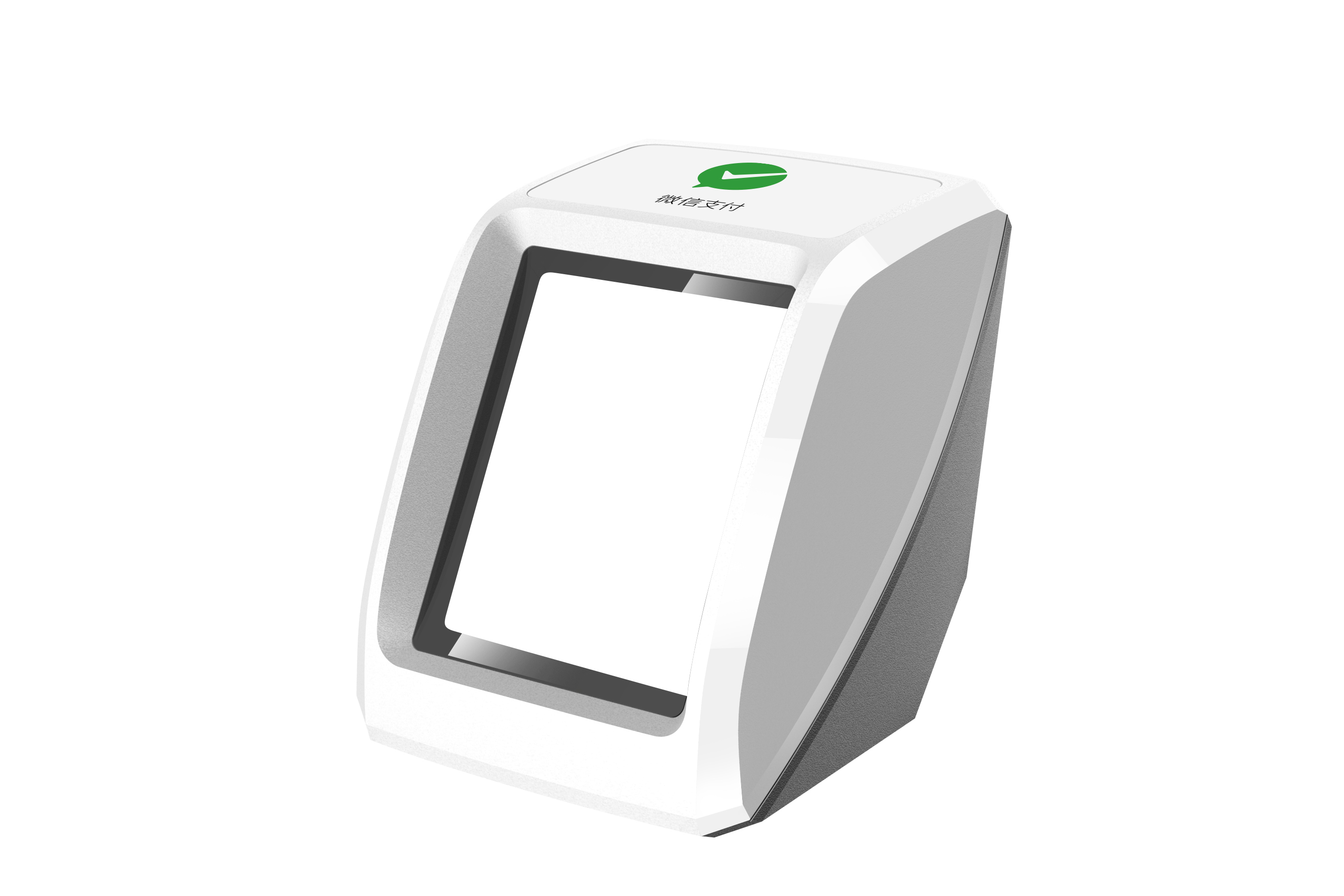

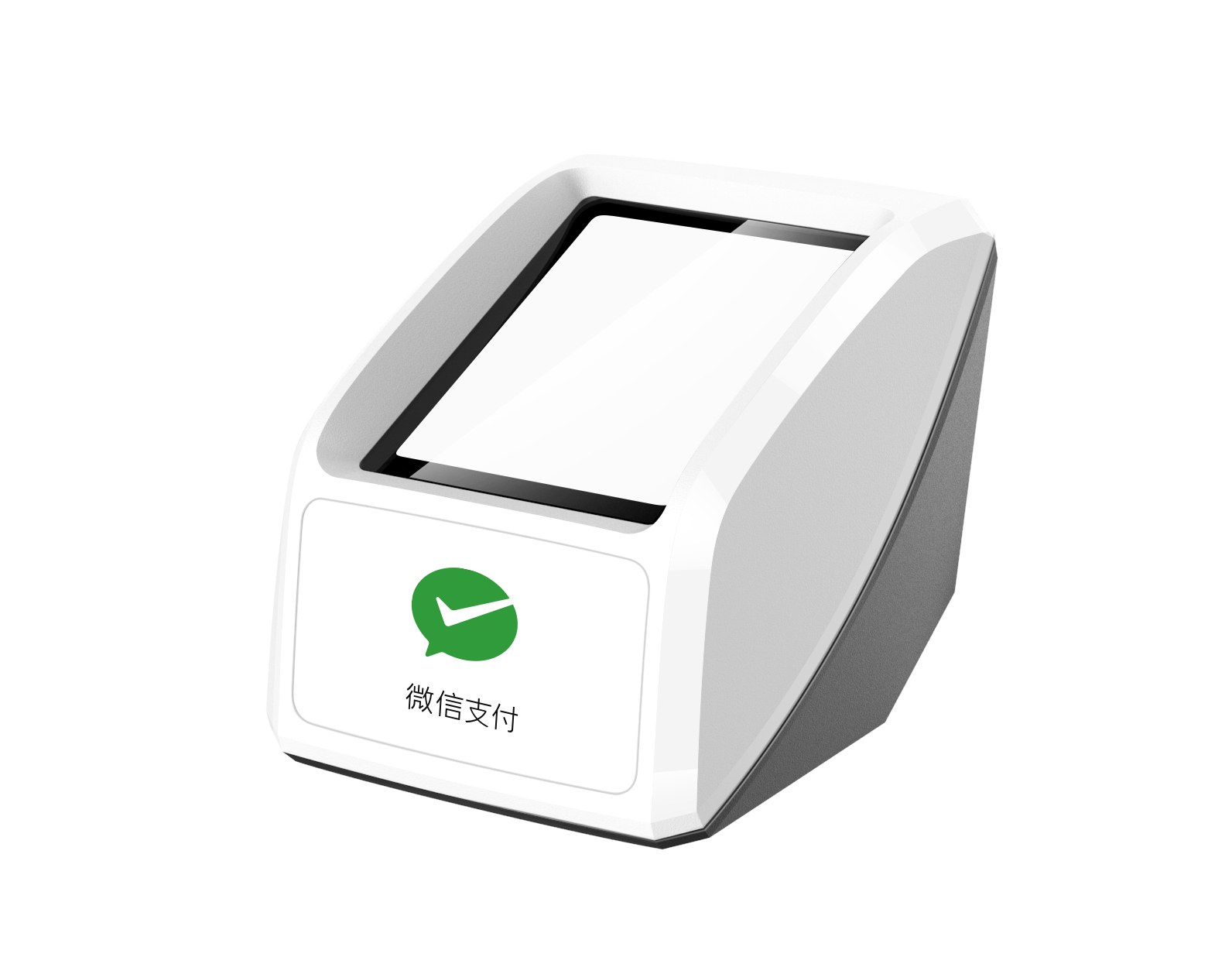

Superlead 7190 Code Scanning Box

Superlead 7190 Code Scanning Box

  • Large window and large viewing angle

  • self-induction image reading

  • Support motion reading, scanning sensitivity

  • Place as you like and scan the code freely

  • Support customization

Application scenarios

supermarkets, restaurants, tobacco hotels, convenience stores, small and micro stores, customer service front desk, etc

Specification of Superlead 7190 Code Scanning Box

Suzhou SuperMax Smart System Co., Ltd.7190
Technical Specification
Physical Characteristics
Dimensions115mm x 115x 105mm
Voltage5 VDC
Electric Current100mA(standby);300mA(Operating)
Performance Characteristics
Sensor Pixels640 pixels (H)x 480 pixels (V)
Light Source IlluminationIllumination:6500K LED
Field of View Angle40.5° (H) x 31° (V)
Roll / Pitch / Yaw360°, ±65°, ±60°
Motion Tolerance2m/s
Print Contrast20%
Communication InterfaceUSB, RS232
Reading Accuracy≥3.9mil
Symbology Decode Capability2-DPDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin, etc.
1-DUPC, EAN, Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, CodabarInterleaved 2 of 5, Mis Plessey, GSI DataBar, China Postal, Korean Postal, etc
Decode Ranges
PDF417 (6.88mil)0mm-50mm
QR (20mil)0mm-100mm
100% UPC-A(13mil)5mm-110mm
Decode Ranges
Working Temperature-20℃~50℃
Storage Temperature-30℃~80℃
HumidityRelative humidity 0%~95%, no condensation
Anti VibrationDesigned to withstand 1.5m(5') drops
Environmental Photoimmunity100.000Lux
