Support high-speed decoding, up to 60fps

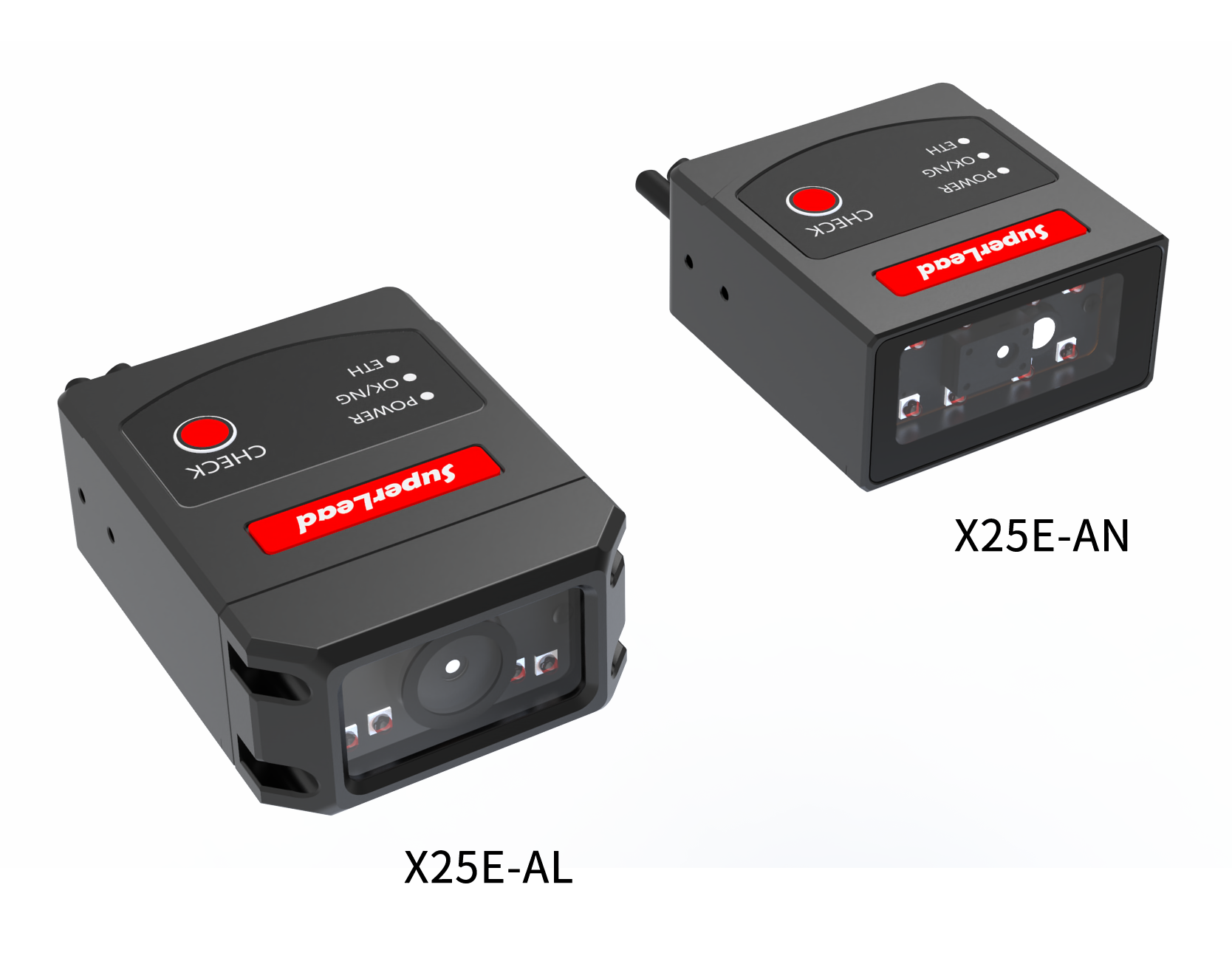

Optional auto focus versions x25e-al and x25e-an
Comprehensive ESD protection, IP65 protection grade
outdoor operation, warehousing and logistics, assembly line, complete automobile and parts, 3C electronic manufacturing, battery manufacturing, PCBA manufacturing, etc.

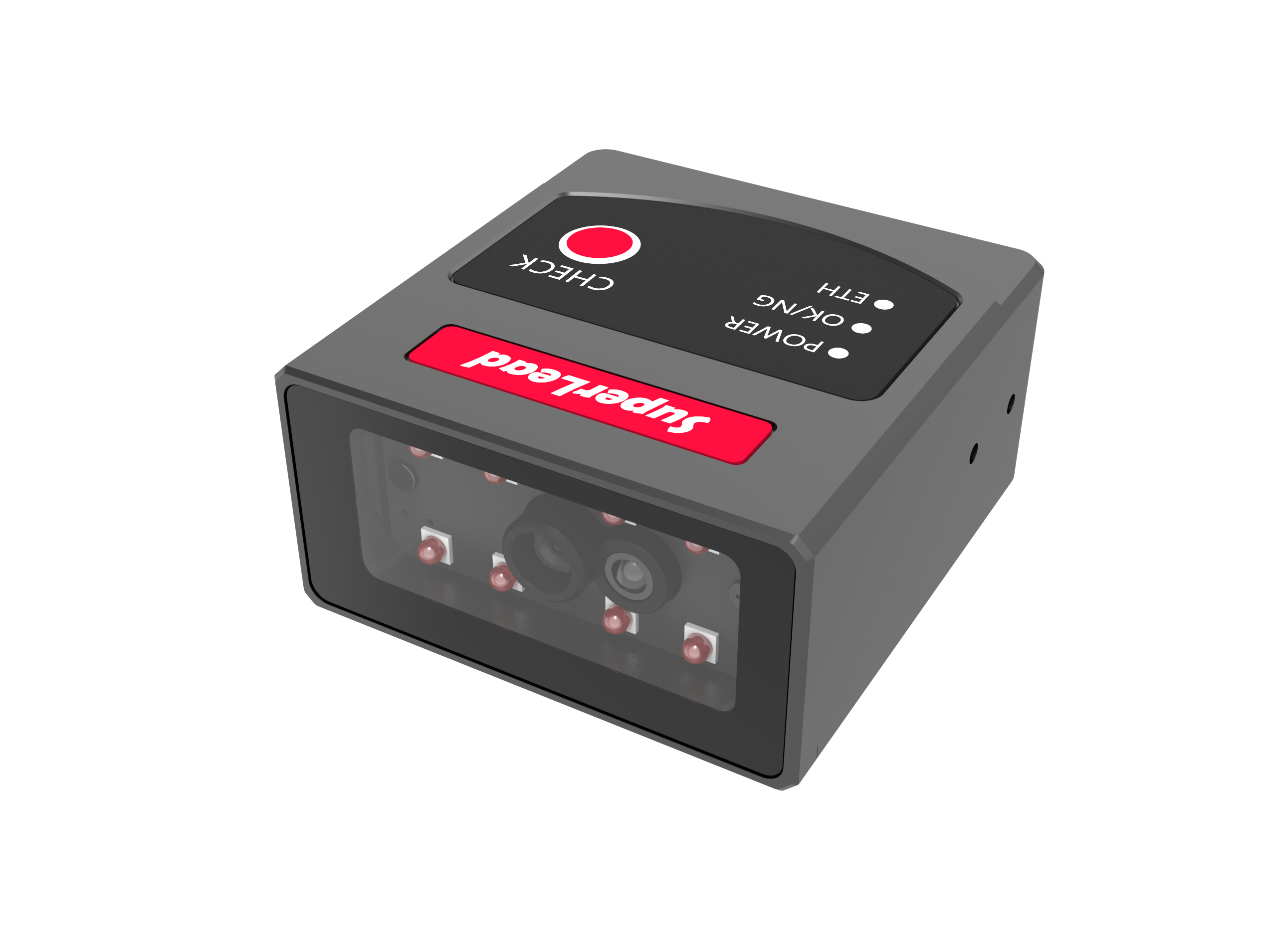

| Suzhou SuperMax Smart System Co., Ltd. | X25E Technical Specification | |
| Physical Characteristics | ||
| Model | X25E-AN | X25E-AL |
| Dimensions | 52.5mm x 27mm x 55mm | 52.5mm x 27mm x 70mm |
| Weight | 190g | 220g |
| Housing Dimensions | Aluminium Alloy | |
| Performance Characteristics | ||
| Sensor Pixels | Global shutter, 1280x800, 60FPS | |
| Light Source Illumination | Highlight red light source, highlight blue light source, highlight white light source | |
| Field of View Angle | 18° | 35° |
| Move Tolerance | 2m/s | |
| Region Decoding | Support decoding of multiple ROI regions | |
| Communication | RS232, Ethernet/IP, Ethernet (TCP/UDP/Modbus Rtu/Profine/EthernetIP) | |
| External Input | 1 circuit photoelectric isolation input, which can be connected to NPN/PNP/relay | |
| External Output | 1 circuit photoelectric isolation output | |
| Power Supply | 5-30VDC (Support USB power supply） | |
| Power Waste | 2W max | |
| Symbology Decode Capability | 2-D: QR Code, Data Matrix, PDF417, Aztec | |
| 1-D: UPC, EAN,IAN,Code128, Code93, Code39, Interleaved 2 of 5, Industrial 2 of 5 | ||
| User Environment | ||
| Working Temperature | 0℃~50℃ | |
| Storage Temperature | -20℃~70℃ | |
| ESD Protection | Contact discharge: 15KV, coupling discharge: 20KV+ | |
| Enclosure Protection | IP65 | |
| Drop | 1.2m cement floor, free fall, 6 sides, X 5 times/=30 times | |
| Environmental Photoimmunity | 100.000 Lux | |
