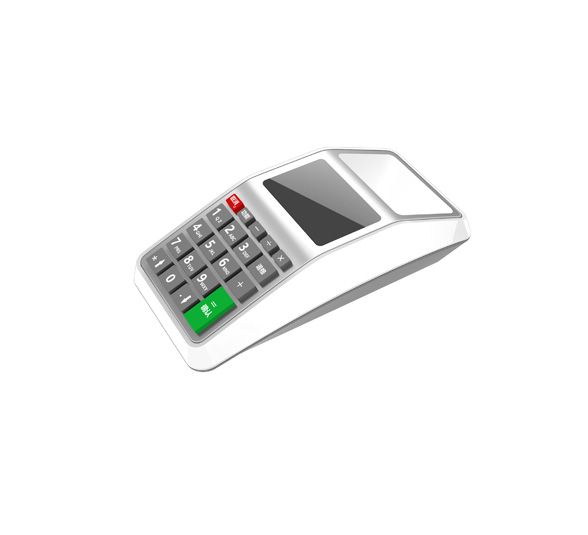

Superlead QR Code Reading Payment Terminal S260

Support WiFi 2.4G wireless communication
Strong endurance
Built-in speaker for voice prompts
Scan wechat payment code and Alipay payment code
4G communication (optional)

Get a Quote

Overview
Details
Specifications
PDF Download

Details of Superlead QR Code Reading Payment Terminal S260

Broad vision
Support 1D / 2D code scanning
Professional mobile phone code reader

Application scenarios of Superlead QR Code Reading Payment Terminal S260

supermarkets, small and micro stores, customer service front desk, financial payment, etc

Superlead QR Code Reading Payment Terminal S260

Specification of Superlead QR Code Reading Payment Terminal S260

Suzhou SuperMax Smart System Co., Ltd.	S260 Technical Specification
CPU	32bit, 400MHz. high-performance CPU
	8MByte Plash+8MByte RAM
Storage	Including GB2312 standard 24×24 16x16 dot matrix library, supporting Chinese
Monitor	2.4-inch color display
	240 x320 pixel
	Visible area: 49x37mm
	Support GPRS. WIFI, electricity and other work status bar display.
	Support the display of GB2312 standard font.
Button	10 numeric keys (0-9)
	10 function keys (*, #, confirm, backspace, function, cancel,+,-,×, ÷).
	1 power key (shared with cancel key), and the key with shutdown function has prompt tone.
Bar Code Scanning Function	Professional code scanning camera, high-performance hardware decoding, supporting all one-dimensional codes and two-dimensional codes.

GPRS Communication	GPRS wireless communication is standard at 900MHz, with transmission power ≥25dBm;
	1800MHz, transmitting power ≥20dBm, receiving sensitivity ≤-102dBm.
4G Communication (Optional Configuration)	LTE-FDD: B1/B3/B5/B8 LTE-TDD:B34/B38/B39/B40/B41 GSM:900/1800 MHz

WIFI Communication	Support WIFI 2.4G wireless communication

Voice Prompt	Built-in speaker to support voice prompt

Power Supply	Equipped with Micro-USB charging cable and USB power adapter (DV, 5V, 1000mA).
	Micro-USB standard charging interface
Endurance Ability	Under GPRS or WIFI communication mode, ensure no less than 480 code scanning transactions
	Continuous use for 8 hours
Physical Interface	1 Micro-USB interface
	1 Micro SIM card slot
Outline Dimension	188mm X 84mm X50.5mm

Acclimatization	Working temperature: 0℃ ~+50℃ Relative humidity: 30% ~ 85% RH.
	Storage temperature: -20℃ ~ +80℃ Relative humidity: 10% ~ 90% RH (no condensation).
	Atmospheric pressure: 60~106Kpa.
